1.2mm Fiber Optic Heat Shrink Sleeve

Brand Name : XXR

Model Number : OFSS-60T

Certification : SGS

Place of Origin : China

MOQ : 50,000pcs

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 200K pcs/day

Delivery Time : 5-7 days

Packaging Details : 100 pcs/day

Name : 1.2*60mm heat shrink tube

Brand : XXR

Material : PE+EVA

Steel rod : 1.2MM

Spec. : 1.2*60 MM

OD after shrinking : 2.7 MM

Color : clear

Working life : 25 years

Contact Now

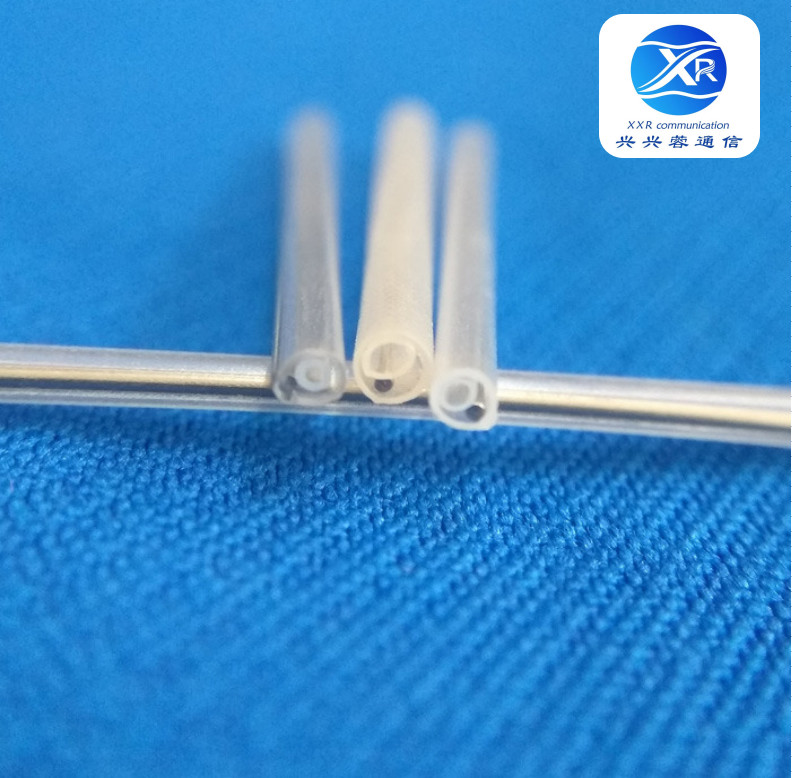

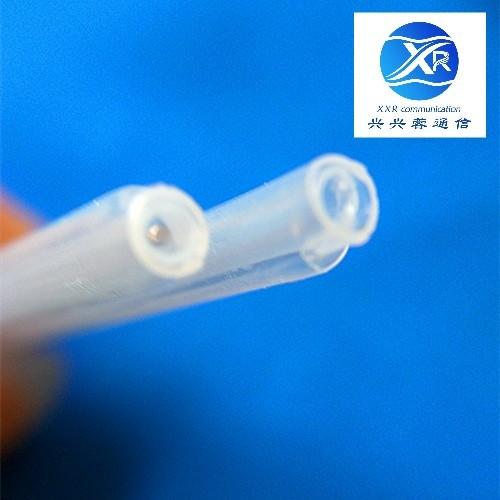

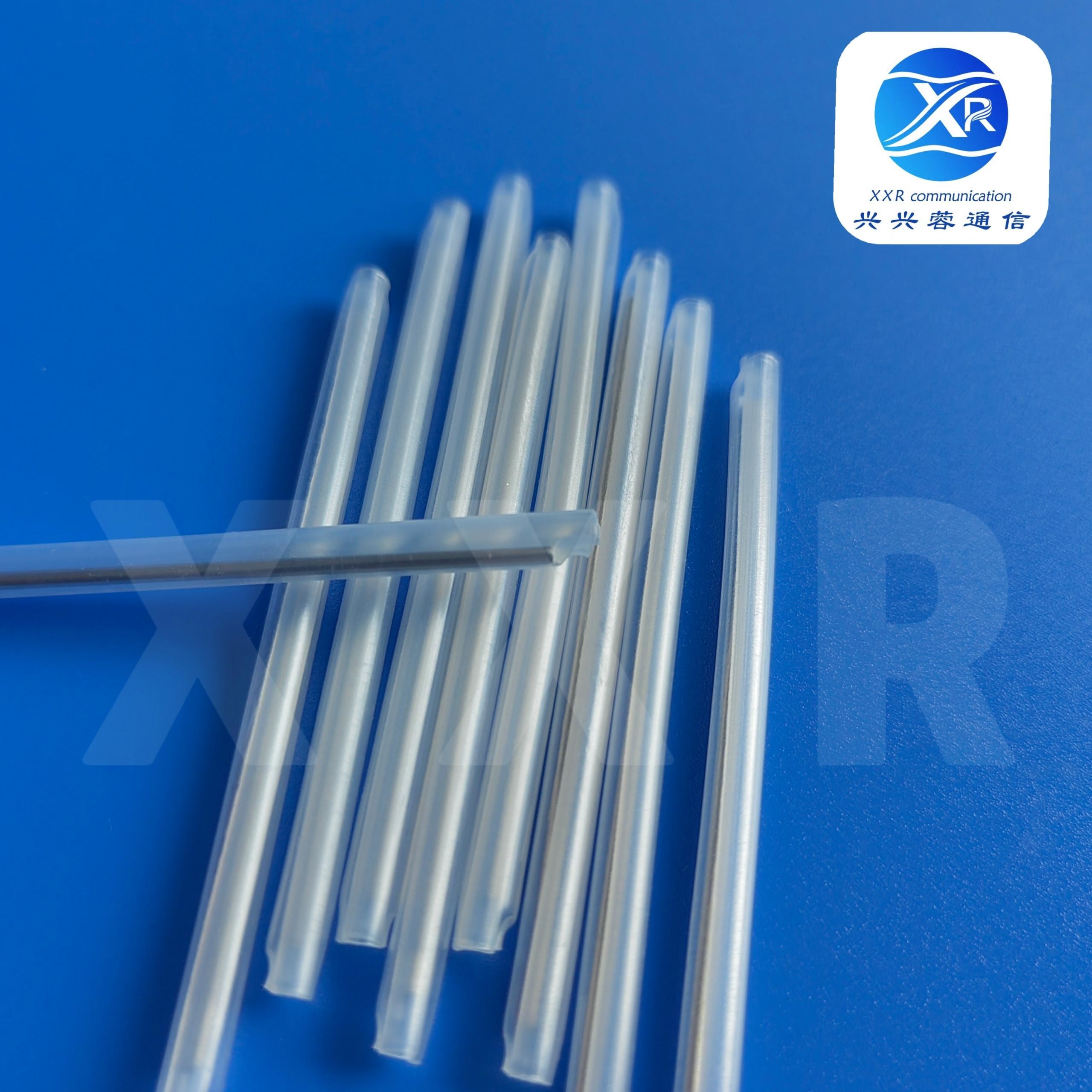

1.2*60mm heat shrinkable fiber splice sleeve

The heat shrinkable sleeve is applied to the optical fiber closure to fix and protect the optical fiber when splicing.

It can be divided into two types(single and mass) according to the function. The single type is used for the single-fiber, and the mass type is used for the ribbon fiber.

It is different in the reinforcement between two types. The single one realizes the reinforcement by the stainless steel needles, the later one via the ceramic reinforcement member to realize the function.

Mass means there are several cores for the fiber. So the mass sleeve includes 4cores, 6cores, 8cores, 12cores(for types).

This product is made up of cross-linked polyolefin heat-shrinkable tubes, Fusion Tubes and stainless steel.

It is specifically designed for the protection of indoor cable splice closure.

Application: optical communication field.

Features: parts splicing, enhanced protection, supporting positioning, reliable.

Used for: optical communication passive products such as FTTH optical fiber distribution box, FTTx fiber optic splice closures, ODF/patch panel, termination box, splice tray, cross-connecting cabinet and so on.

Specifications:

Part No.	Spec. (mm)	Steel rod dia.(mm)	Outer tube L.(mm)	OD after shrinking (mm)	Inner tube L.(mm)	ID (mm)
OFSS-40T	1.5 * 40	1.5	40	3.0	40	≥1.2
OFSS-45T	1.5 * 45	1.5	45	3.0	45	≥1.2
OFSS-60T	1.5 * 60	1.5	60	3.0	60	≥1.2
OFSS-40T	1.2 * 40	1.2	40	2.7	40	≥1.2
OFSS-45T	1.2 * 45	1.2	45	2.7	45	≥1.2
OFSS-60T	1.2 * 60	1.2	60	2.7	60	≥1.2
OFSS-40T	1.0 * 40	1.0	40	2.5	40	≥1.2
OFSS-45T	1.0 * 45	1.0	45	2.5	45	≥1.2
OFSS-60T	1.0 * 60	1.0	60	2.5	60	≥1.2
