Home > Fiber Optic Splice Sleeve >

PE 60mm Clear Splice Sleeves FTTx Fiber Cross Connect Cabinet

Product Categories

Fiber Optic Splice Sleeve [36]
Fiber Optic Cable Protection Sleeve [14]
Fiber Optic Heat Shrink Sleeve [18]
40mm Splice Sleeves [10]
60mm Splice Sleeves [18]
Fusion Splice Protection Sleeves [12]
Clear Heat Shrink Tube [13]
Ribbon Fiber Splice Sleeve [8]
Fiber Splice Protector [9]
Fiber Protection Tube [6]
Fiber Loose Tube [4]
Cold Shrink Tube [7]
Fiber Optic Cable Protector [6]

Chengdu Xing Xing Rong Communication Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

PE 60mm Clear Splice Sleeves FTTx Fiber Cross Connect Cabinet

Brand Name : XXR

Model Number : OFSS-40T

Certification : SGS

Place of Origin : China

MOQ : 50,000 pcs

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 200K pcs/day

Delivery Time : 5-7 days

Packaging Details : 100 pcs

Name : fiber hot fusion sleeve

Brand : XXR

Spec. : 1.5*40*201

Use : FTTx & FTTH

Material : EVA

Length : 60MM

Color : clear

OD after shrink : 3.0mm

Used for : fiber cross cabinet

Packing : 100 pcs

Contact Now

PE 60mm Splice Sleeves FTTx Fiber Cross Connect Cabinet

For Fiber Optic Patch Panels/ODF/Fiber Distribution Box

Cross Connect Cabinet/Splice Tray/Splice Closures

I 60mm long I EVA Tube I 201 Stainless Steel I OD 3.0mm

I Steel Rod Dia.1.5mm

Fiber Optic Splice Protection Sleeve consists of heat shrink tube, hot melt tube

and steel rod or ceramic rod. The hot shrink tube is usually made of PE or EVA,

and the melt tube is EVA. As for the steel rod, which is made of stainless steel

304 or 201.

Fiber Optic Splice Protection Sleeves are widely used in the filed of optical

communication as projects FTTH & FTTx.

As a global leading manufacturer of fiber optic splice protection sleeves,

XXR is devoted to manufacturing various of fiber sleeves for fiber optic

closures as patch panels/ODF, terminal box, fiber optic splice closures,

fiber distribution box, cross connect cabinet etc.

Production capability: 180,000 pcs per day

Payment: T/T, Western Union, others

Delivery: By Air via DHL, FedEx,UPS, TNT, EMS etc or By Sea.

Lead time: 5-7 days

Specifications:

Part No.	Spec. (mm)	Steel rod dia.(mm)	Outer tube L.(mm)	OD after shrinking (mm)	Inner tube L.(mm)	ID (mm)
OFSS-40T	1.5 * 40	1.5	40	3.0	40	≥1.2
OFSS-45T	1.5 * 45	1.5	45	3.0	45	≥1.2
OFSS-60T	1.5 * 60	1.5	60	3.0	60	≥1.2
OFSS-40T	1.2 * 40	1.2	40	2.7	40	≥1.2
OFSS-45T	1.2 * 45	1.2	45	2.7	45	≥1.2
OFSS-60T	1.2 * 60	1.2	60	2.7	60	≥1.2

Characteristics:

. Executive standard: UL 224, CAN/CSA C22.2 N0198.1-99
. Operating temperature: -55 ℃ / +105 ℃
. Minimum shrink temperature: ≥70 ℃
. Full recovery temperature: ≥105 ℃
. Environmental standards: RoHS

Technical Data:

Property	Criterion	Test Method	Value
Longitudinal change	-5%~5%	ASTM D2671	PASS
Tensile strength	≥10.4MPa	ASTM D2671	PASS
Elongation at break	≥200%	ASTM D2671	PASS
Volume resistivity	≥10¹⁴ Ω·cm	IEC 60093	PASS

Composition:

PE 60mm Clear Splice Sleeves FTTx Fiber Cross Connect Cabinet

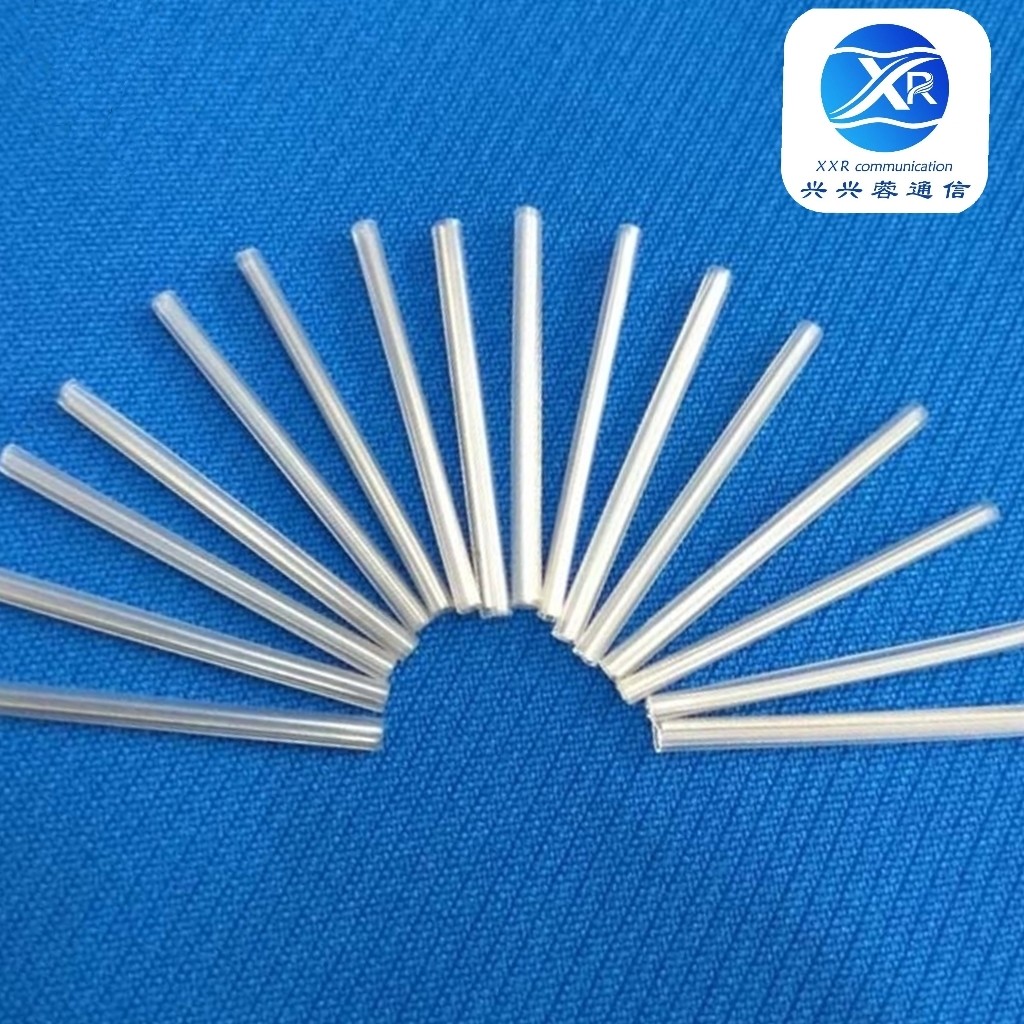

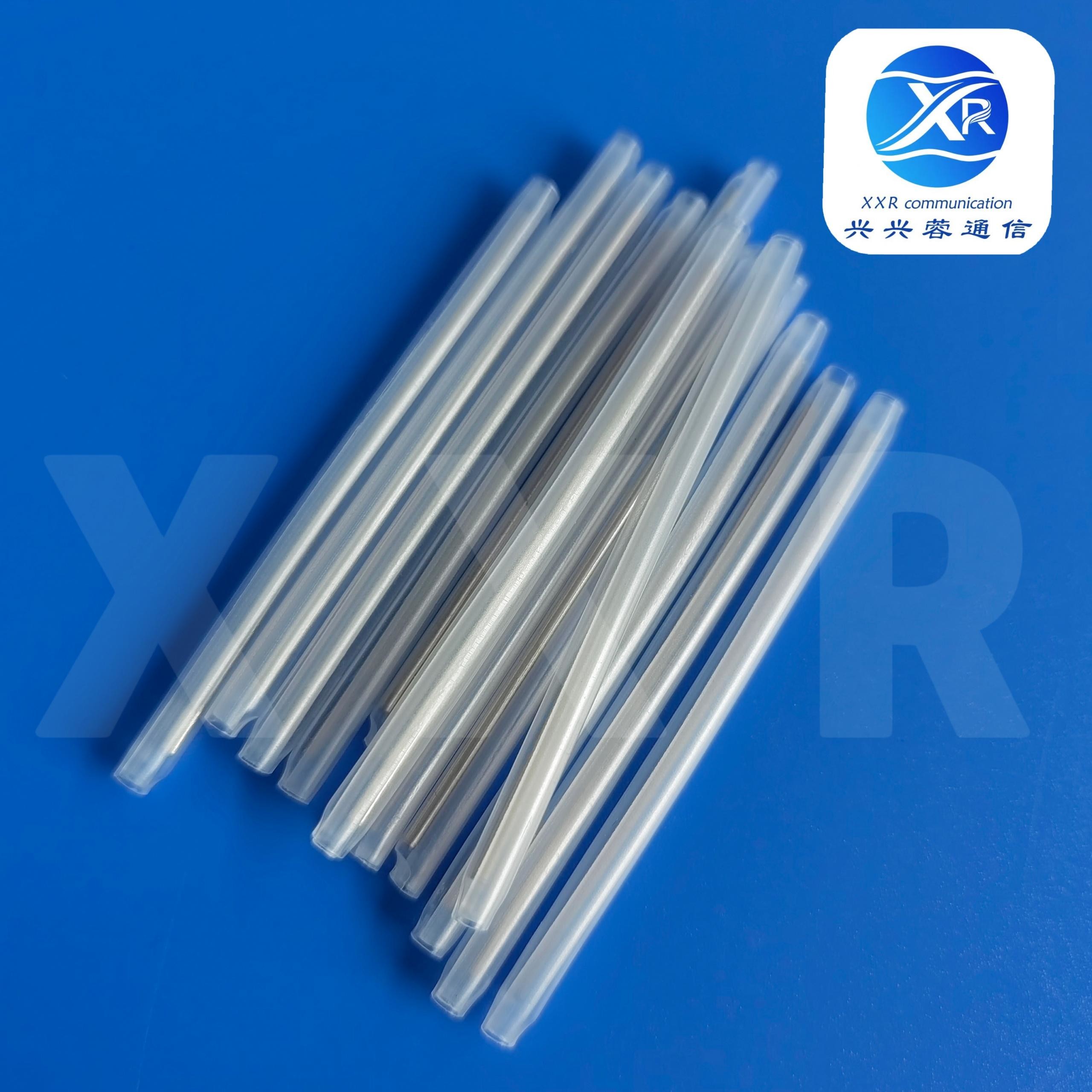

Physical Pic.:

PE 60mm Clear Splice Sleeves FTTx Fiber Cross Connect Cabinet

Application:

XXR Communication Technology is specialized in manufacturing sorts of

fiber splice sleeves for global fiber closure manufacturers.The company

passed SGS and the products complied with RoHS and Reach.

The company has three advanced production lines, including steel rod

production line, plastic tube production line and automatic-assembly

production line.The capability of producing sleeves exceeds 200,000

pieces a day.

Product Tags:

PE 60mm Splice Sleeves

FTTx 60mm Splice Sleeves

2.5mm fiber splice sleeves
